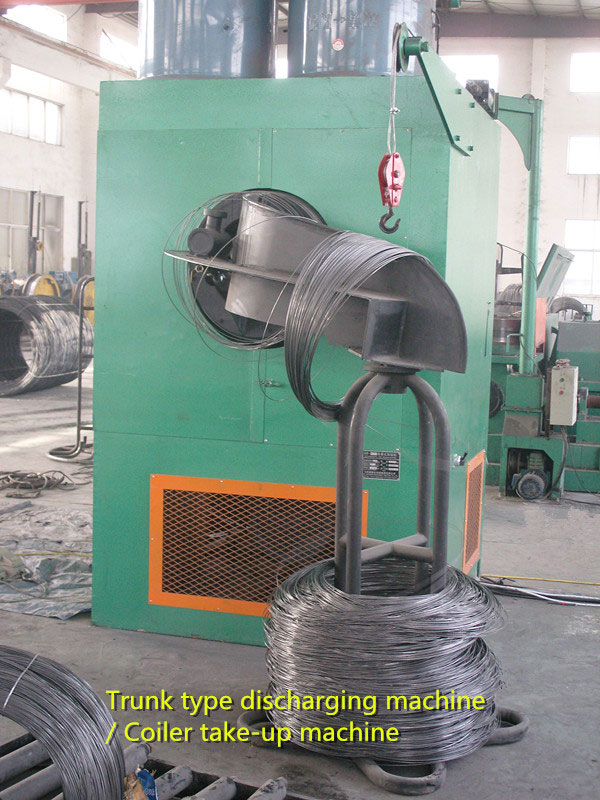

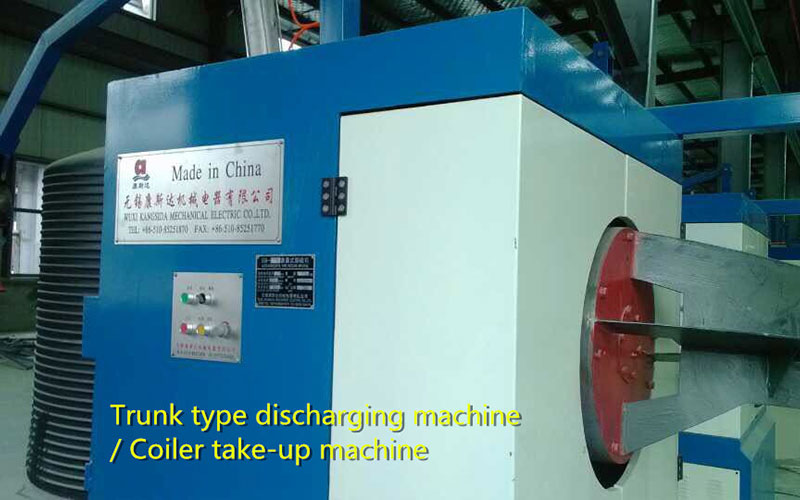

Trunk-type Unloading Line Machine
ZX automatic horizontal (trunk) type wire unloading machine are independent research and developed, design, produced by WUXI KANGSIDA MECHNICAL ELECTRIC APPLIANCE CO., LTD. Often used for wire rod market, high, medium, low carbon steel wire, copper wire, aluminum wire tensile strength low heavy wire unloading, mainly supporting the pulley type continuous wire drawing machine, so that the whole drawing, wire unloading work can be carried out continuously. The machine features: AC frequency conversion control, dynamic balance outstanding, velocity distribution of wire drawing machine, coil weight and saving labor.
Note: according to the needs of users with mechanical speed ratio, drum diameter.
| NO. |
ITEM |
UNIT |
NAME ZXA300～600 |
| 1 |
The take-up reel diameter |
mm |
Ф300～600 |
| 2 |
Accept (unloading) diameter |
mm |
Ф1.4～2.6 |
| 3 |
Accept (unloading) line speed |
m/min |
According to customers |
| 4 |
Accept (unloading) line intensity |
Mpa |
1900～2600 |
| 5 |
Motor power |
Kw |
11～45 |
| 6 |
Shape size |
mm |
1500×1550×2350 |
| 7 |
weight |
t |
2.5 |
The DV series of vertical pulling machine ZX automatic horizontal (trunk) type wire unloading machine are independent research and developed, design, produced by WUXI KANGSIDA MECHNICAL ELECTRIC APPLIANCE CO., LTD. It’s a set of collecting line and drawing as whole heat treatment equipment. Suitable for heat treatment of heavy coil take-up, volume, bright drawing and patented steel wire and steel wire stainless steel wire annealing after market close winding. The machine features: continuous production, take-up reel big, one belt combined cycloid reducer drive, AC variable frequency control, stepless speed adjustment.
Note: we can special design according to special requirements of users and technical parameters.
| Typical models |
|
DV1000 |
DV800 |
DV600 |
DV450 |
| Draw diameter |
mm |
1000 |
800 |
600 |
450 |
| Accept (unloading) wire diameter |
mm |
12.0-6.0 |
7.0-3.0 |
5.0-2.0 |
3.0-1.0 |
| Accept (unloading) line speed |
m/min |
<10 |
<20 |
<20 |
<25 |
| Motor power |
Kw |
5.0-3.0 |
3.0-2.2 |
2.2-1.0 |
0.75 |
卸線 |
|
裝車 |
裝箱 |
|
裝箱 |
裝箱 |
|
裝箱
|

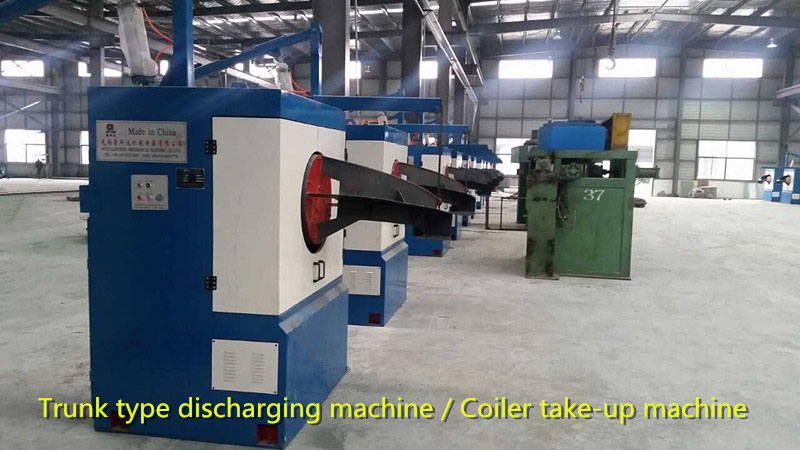

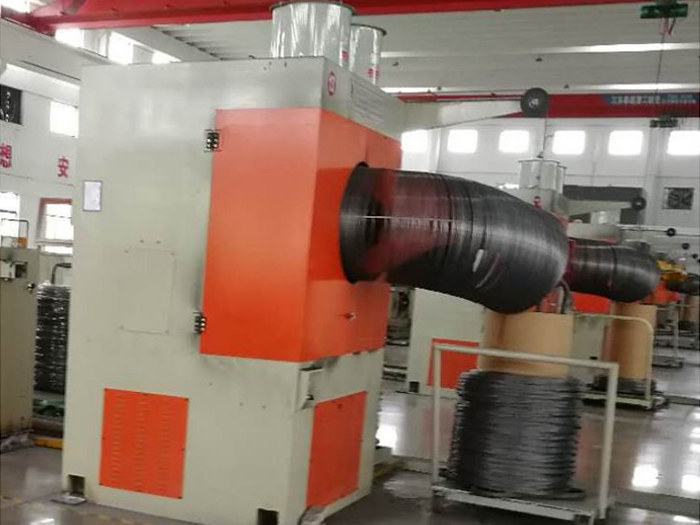

象鼻式現(xiàn)場(chǎng)圖片 |
|

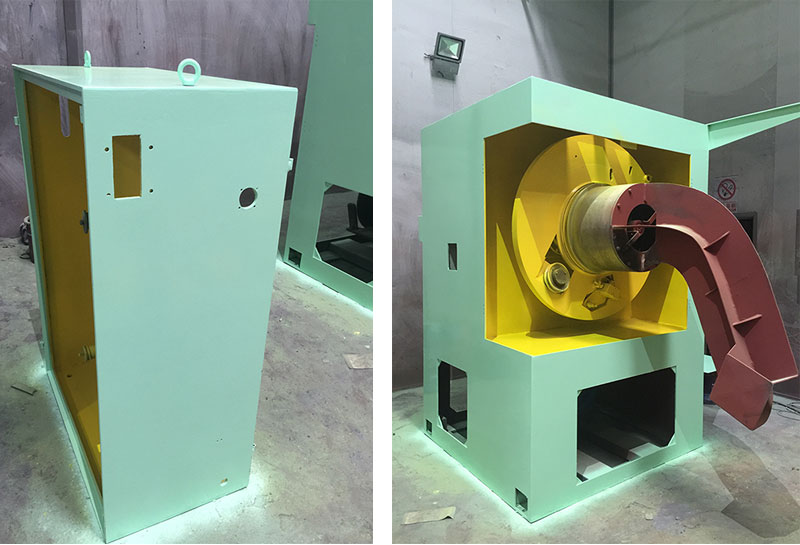

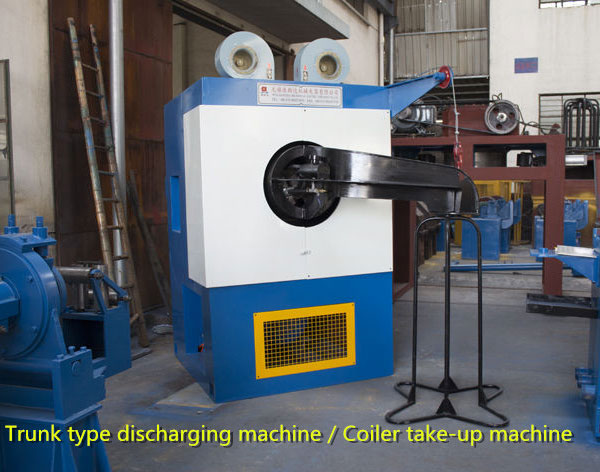

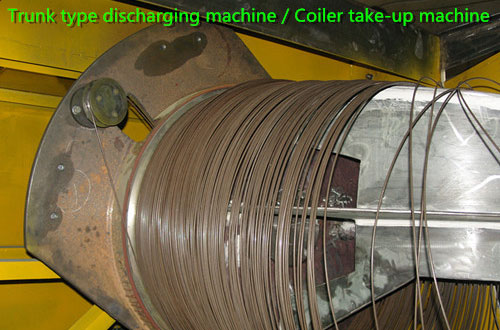

象鼻式卸線機(jī)圖片 |
