Products

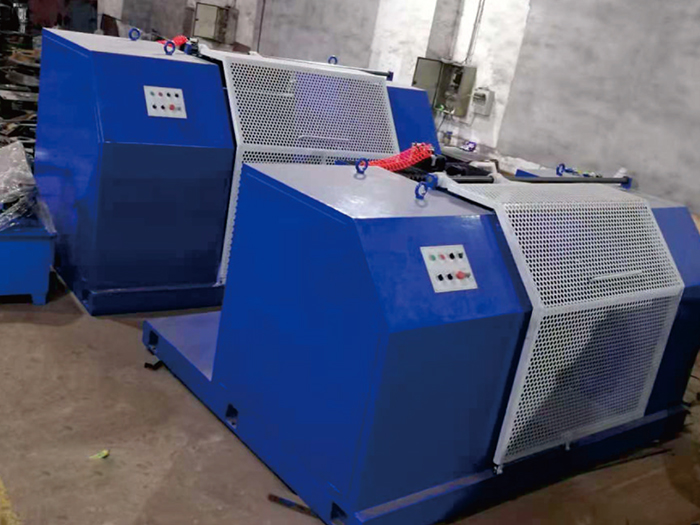

Spool Take-Up Machine



The SG series spool take-up machine independently developed, designed and produced by Wuxi Kangstar Machinery Electric Co., Ltd. is suitable for the take-up of the LZ straight-in type, LT water tank type, and LW pulley-type wire drawing machine. Machine features: V-belt, chain or timing belt drive, torque motor or frequency conversion motor drive, polished rod cable, hand wheel or pneumatic locking, I-shaped wheel passively rises by conical rotation or automatically rises pneumatically.
 Note: The speed and top tightening device can be set according to the needs of users

Typical model SG1150 SG800 SG630 SG300
工字輪外徑 I-wheel outer diameter mm 1150 800 630 300
收線直徑Take-up diameter mm 4.5-3.0 3.5-2.0 2.5-1.5 1.5-0.8
收線力矩Take-up torque N·m 125 100-80 80-60 60-40
電機功率Motor Power Kw 30-22 18.5-15 15-11 11-7.5
拖動方式Drag method 力矩電機、變頻電機 Torque motor, variable frequency motor
