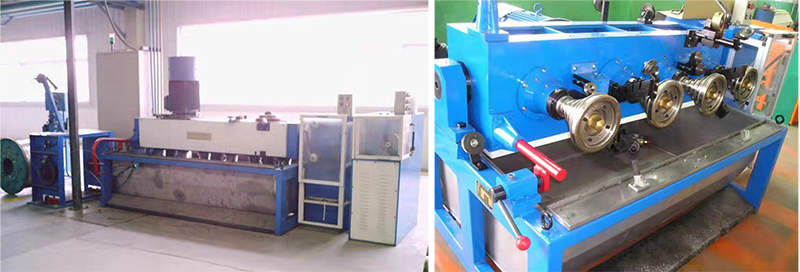

Thi s t ype m a c h i n e i m p r o v e d a n d produced by our c o m p a n y i s s p e c i a l l y d e s i g n e d f o r d r awi n g h i g h - strength copperp l a t e d s t e e l wire which use for making steel cords. It is also s u i t a b l e f o r d r a w i n g fi n e - s i z e d h i g h - c a r b o n s t e e l wires and alloy w ir e s , a n d i s used for vertical or horizontal I spool take-up. Th i s m a c h i n e has AC frequency conversion speed regulation, PLC f u l l d i g i t a l communication control, constant t e n s i o n adjustment, touch screen display, complete safety system, automatic diagnosis and m a n - m a c h i n e d i a l o g u e functions.
加工材料 Raw material | 索氏體化鍍黃銅、高碳鋼絲 Sorbite brass plating, high carbon steel wire |
啟動時間 Start time | s | 5-30 | |
進線直徑 Input | mm | ≤1.7-2.8 | 驅(qū)動電機功率 Main motor | kw | 30-45 |
出線直徑 Output | mm | 0.25-1.0 | 電控方式 Electrical Control | PLC控制、多功能自動保護 PLC, Multi-function and automatic protection | |
進線抗拉強度 Input tensile strength | MPa | <1280-1350 | 塔輪表面 Capstan | 噴涂 WC,HRC60--62 Coated WC,HRC60--62 | |
出線抗拉強度 Input tensile strength | MPa | 2250-3200 | 噪音 Noise | db | <82 |
道次 Max.Dies Qty | draft | 17-25 | 潤滑冷卻方式 Cooling type | 浸入式循環(huán)冷卻 Immersion circulating cooling | |
平均壓縮率 Average compression ratio | % | 12.5-14.5 | 潤滑箱容量 Water tank volume | L | 600-800 |
拉拔速度 Speed | m/s | 10-20 | 重量 Dimension | mm | (1980-4200) x1600 x (1650-1910) |
塔輪結(jié)構(gòu) Capstan structure | 分體式 Split type | 外形尺寸 Weight | kg | 2500-3500 | |
放線工字輪 Pay-off | mm | 用戶自定 Customised |
