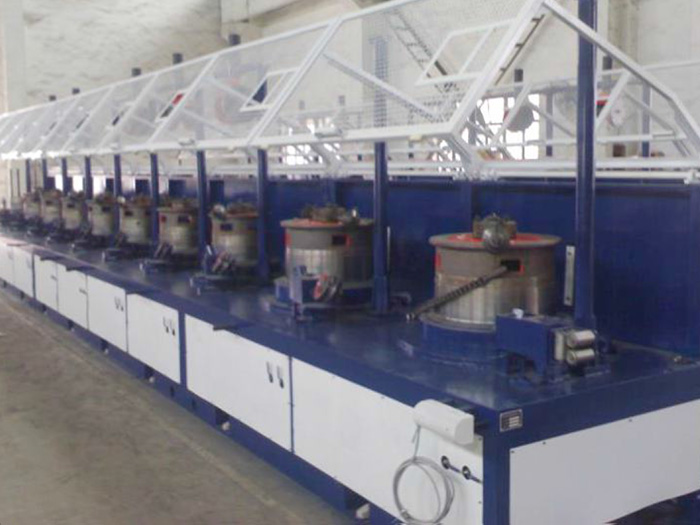

The LW series pulley type wire drawing machine is a traditional wire drawing equipment. For suitability, if the trunk is equipped with a trunk unloading machine, the coil weight can be unloaded at any weight below one ton, and the front cable can be unloaded, which is especially suitable for tightening. Turnover use in the firmware industry. According to the customer's drawing requirements, single-head and multi-head combinations can be used. The gearbox noise of this machine is less than similar products, and the gears are thick Actually, frequency conversion speed regulation.
機臺主要技術(shù)參數(shù) Main technical parameters of the machine
典型型號 Model | LW10/560鋼絲 | LW10-560低碳絲 | LW10-560銅絲,鋁絲 | |
卷筒直徑 Capstan diameter | (mm) | 560 | 560 | 560 |
拉拔道次 Drawing passes | (draft) | 10 | 10 | 10 |
進線強度 Inlet line intensity | (draft) | ≤1100 | ≤500 | ≤500 |
******進線直徑(mm) Max.Inlet size diameter | 6.5 | 6.5 | 6.5 | |
最小出線直徑(mm) Min.Outlet size diameter | 2.0 | 1.8 | 1.8 | |
總壓縮率 (%) Gross compression rate | 90.53 | 92.3 | 95 | |
拉拔速度j Drawing speed | :m/min) | 360 | 360 | 360 |
電機功率 Motor power | (Kw) | 22 | 15 | 15-18.5 |
拖動方式 Drag way | 用戶可選用:普通電機、變頻電機 | |||
備注 Note | 拉拔道次與卷筒直徑可根據(jù)用戶要求定制 |
